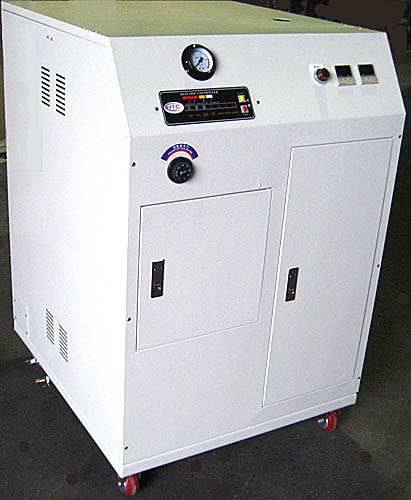

A sterilizer which used superheated-steam

superheated-steam

Why do we use superheated-steam?

・Used superheated-steam return to water.

・It excludes impurities in the condition which returned to water or it excludes them on the way.

・It is possible to resolve in superheated-steam.

・Resources are sustainable.

・How does it make superheated-steam a efficiently?

・There is limitlessly little environmental load . if we use renewable energy.

Specification

Superheated-steam sterilization which is hot instantly in the feeling (nozzle temperature Of

Rated voltage

Heating device heater

Heating boiler heater

Equivalent-evaporation

Holding-water-quantity

Elevated tank

Outside-dimension

Use maximum pressure

Mass

200V

4.5kw

6.0kw

10.0kg/h

4.2L

13L

600WX600DX1080H

0.5MPaG

93kg

A sterilizer which used superheated-steam



Characteristic

Sterilization

It is a flash pasteurization with superheated-steam (150℃ of nozzle exhaust temperatures)

Hand operation of ultra-high temperature steam is possible at the heat-resistant special hose

Environment & safe

It adopts an electric-type boiler and the smokeless and it is odorless and safety’s being high.

There is not an influence to the food over the equipment in the use only of water

Structure & feature

It is possible to use superheated-steam and a saturated aqueous vapor at the same time.

However ,the condition of  not to water can do the continuation jet of 1 hour.

Workability

That the qualification is unnecessary, the operation,too ,are simple with the simplified styled boiler.

The movement is simple in the one with the caster.
