Honeycomb activated carbon reproducing device



Specification



The honeycomb activated carbon used for a deodorization apparatus gradually loses ability for absorption. (the removal efficiency of the bad smell material decreases)  it is the device which desorption revives a used honeycomb activated carbon at 330℃  using super heating and can reuse. It is reproduced and can use the honeycomb activated carbon repeatedly.

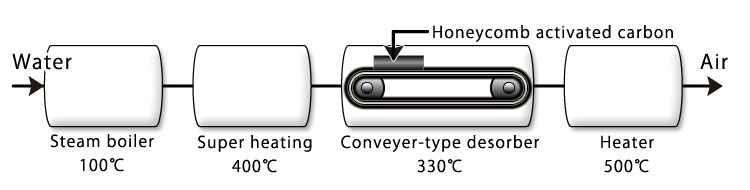

Flow sheet

Flow sheet

It is disintegrated through superheat resolution heater 500℃ ,and the VOC gas residual substance which desorbed with reproducing device becomes the safe atmosphere and is released.

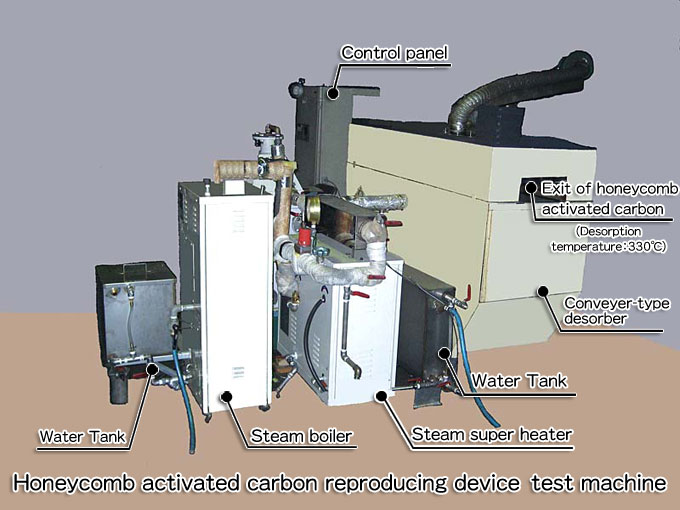

Honeycomb activated carbon reproducing device

Conveyer-type desorber outline

Device dimensions(the main body)

600W X 1,500L X 1,300H

Removal efficiency

Toluene(30g / 200g piece)99%

Electricity use

25kw / H

Desorption temperature

330℃

Resolution temperature

500℃

Processing capacity

7minutes / piece 10pieces / 60minutes or less

information

 In organic solvent recovery ,it links up with  Environmental Partnership corporation and it tackles the recycling processing of a industrial waste.
